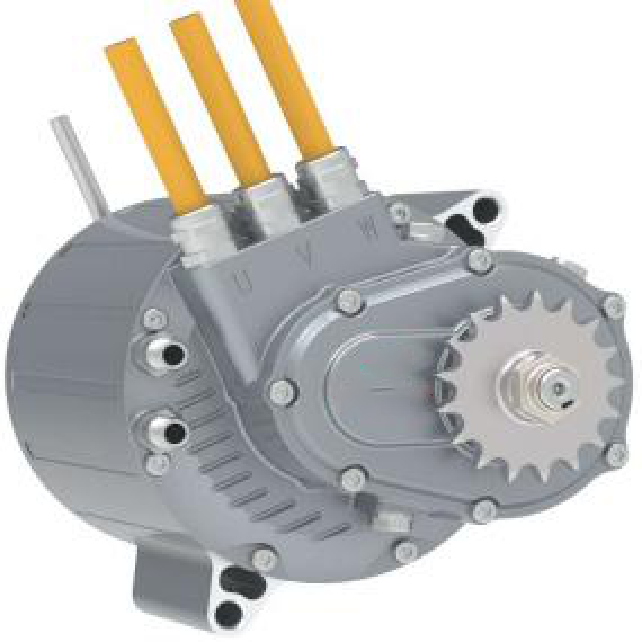

Product Description

Main parameters

Product modelEV-M2M-009
Motor size278*187*198 mm
Motor weight17 KG
Installation position

Mid

Rated voltage72 V
Rated power12 KW
Peak power24 KW
Rated torque19 N.m
Peak torque52 N.m
Rated speed6000 RPM
Peak speed9000 RPM
Appearance colorDark Grey
Maximum efficiency≥90 %
Transmission ratio1:2.526
Number of pole pairs5
Position sensorMagnetic Encoder
Temperature sensorPT1000
Insulation classF(155℃)
Protection gradeIP67
Transmission formGear Drive
Cooling methodWater Cooling

Dimension



Wiring Diagram


InstructionThree Phase Line
ColorYellowGreenBlue
DefinitionUVW
Connection MethodGrounding Lug: SC25-6
Signal Line
ColorRedYellowGreenBluePurpleWhiteBrownOrangeBlack
Definition+5VA+B+Z++PT1000Z-B-A--GND
Connection MethodPlastic Case: DJ7091Y-2.3-11
