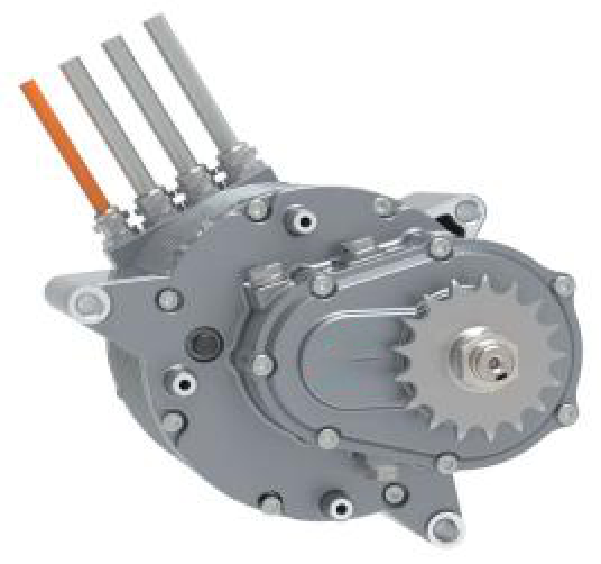

(EV-M2M-006) 72V 16KW Mid Motor
Email : info@etechpro.com
Whatsapp : +86-13373669025
Contact Us
Chat Now

Product Description

Main parameters

Product modelEV-M2M-006
Motor sizeφ160*248 mm
Motor weight11.5 KG
Installation position

Mid

Rated voltage72 V
Rated power9 KW
Peak power16 KW
Rated torque11 N.m
Peak torque50 N.m
Rated speed8000 RPM
Peak speed9000 RPM
Appearance colorDark Gray
Maximum efficiency≥90 %
Transmission ratio1:2.526
Number of pole pairs5
Position sensorMagnetic Encoder
Temperature sensorPT1000
Insulation classF（155℃)
Protection gradeIP67
Transmission formGear Drive
Cooling methodNatural air cooling

Dimension



Wiring Diagram


InstructionThree Phase Line
ColorYellowGreenBlue
DefinitionUVW
Connection MethodGrounding Lug： SC25-6
Signal Line
ColorRedYellowGreenBluePurpleWhiteBrownOrangeBlack
Definition+5VA+B+Z++PT1000
Z-B-
A--GND
Connection MethodPlastic Case： DJ7091Y-2.3-11
